LED cube display

Product Introduction

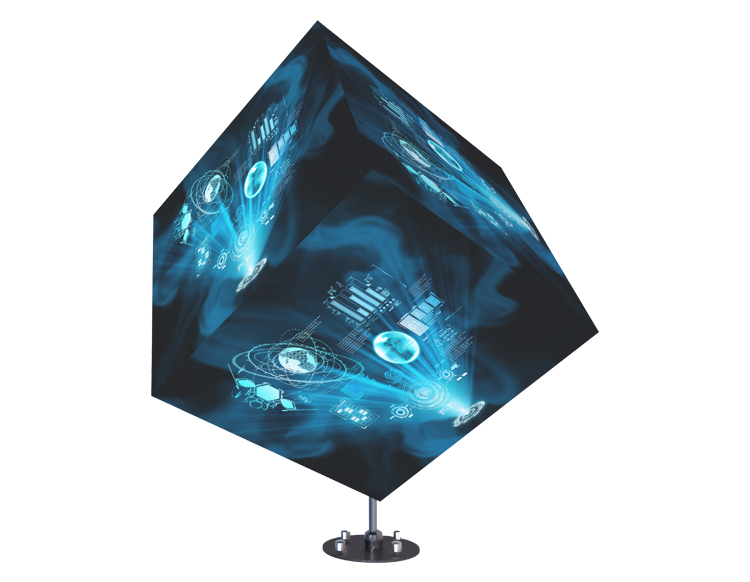

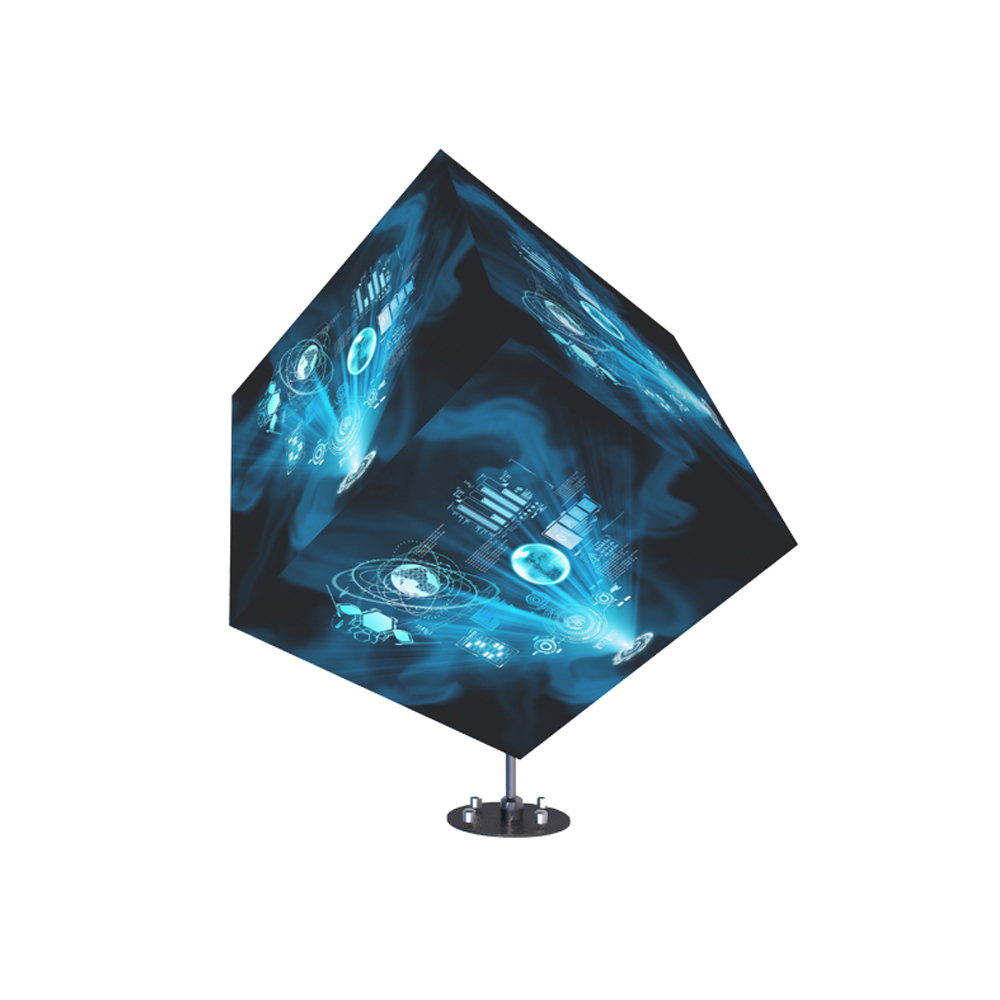

LED cube display.jpg

six-sided cube is completely seamless connected

· High pixel density, clear and sharp picture

· High contrast, high resolution

· Custom structure, high heat dissipation performance

· 360°Full perspective broadcast, rubik's cube display, highlight personality

· Customized products, support floor standing install, suspended install, embedded installation.

· Professional packaging protection, protection perfectly.

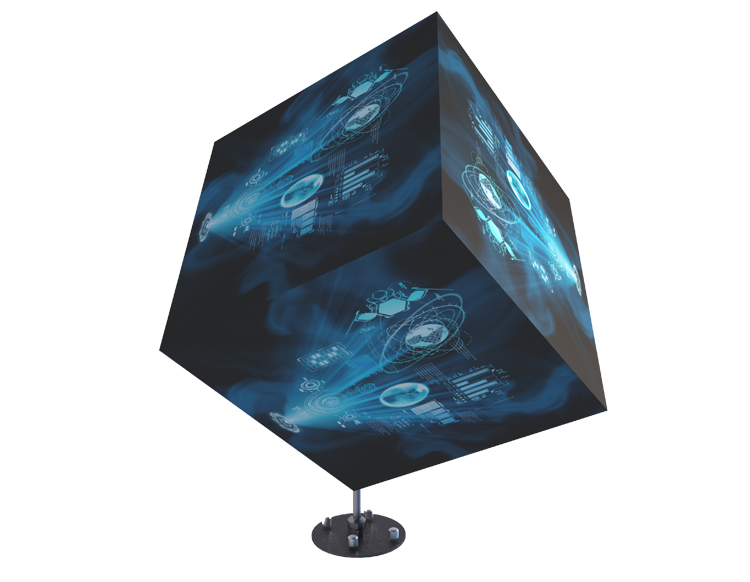

cube led display.jpg

Technical parameters of LED cube display

Model	p2	p2.5	p3	p4	P4	p5
Pixel pitch(mm)	2mm	2.5mm	3mm	4mm	4mm	5mm
LED Type	SMD1515	SMD1515	SMD2020	SMD2020	SMD1921	SMD2727
Application Environment	indoor	indoor	indoor	indoor	outdoor	outdoor
Pixel density(pixel/㎡)	250000	160000	111111	62500	62500	40000
LED panel size	customize	customize	customize	customize	customize	customize
Refresh rate(HZ)	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920
Cabinet size	customize	customize	customize	customize	customize	customize
Brightness	800cd-1000cd	800cd-1000cd	800cd-1000cd	800cd-1000cd	4000cd-5000cd	4000cd-5000cd
Average power（w/㎡）	≤240	≤220	≤230	≤220	≤300	≤300
Maximum power（w/㎡）	≤660	≤650	≤640	≤650	≤950	≤950
Maintenance method	Front	Front	Front	Front	Front	Front
Waterproof level	IP32	IP32	IP32	IP32	IP65	IP65
Input voltage	AC100V-240V	AC100V-240V	AC100V-240V	AC100V-240V	AC100V-240V	AC100V-240V
Service life	100,000 hours	100,000 hours	100,000 hours	100,000 hours	AC100V-240V	100,000 hours
