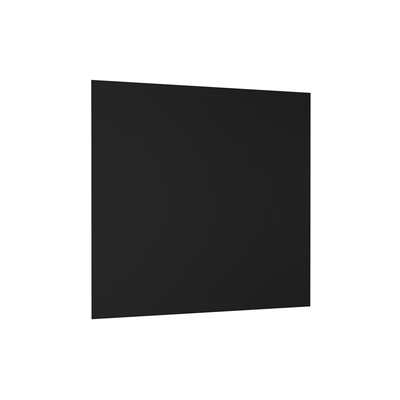

LS.Master VP5/VP6


Module size --
Brightness 1200~1500nit
Refresh rate 3840Hz
Protection class indoor
Product Introduction

1. Lightweight design, the product adopts a large number of cross structures to reduce the weight and ensure the structural strength of the product.

2. Ultra-thin design, magnesium alloy frame, thinner structure, the total thickness is less than 55mm.

3. The integrally formed beam has high precision and high flatness, which effectively improves the display effect

4. Matte matte LED lamp beads, matte black PCB surface treatment, ink color low reflection, easy to achieve high contrast, up to 4000: 1.

5. Adopt CE \ UL certified high-efficiency power supply, dual backup design of current sharing power supply, dual power supply current sharing low power consumption when there is no fault, longer power supply life and higher stability

6. Adopt 16Bit LED control system, dual receiving card backup, non-inductive switching technology.

7. The screen can be installed with one hand, and the hand can be installed immediately after installation.

8. The screen body comes with wiring harness, no need to prepare additional wires.


More Parameters


ItemLS.Master VP5LS.Master VP6
Pixel pitch2.976mm   3.125mm
Pixel density112896/sqm102400/sqm
LED configurationSMD3 in 1 blackSMD3 in 1 black
Brightness1200~1500nit1200~1500nit
cabinet size500*500*55mm600*600*55mm
Cabinet resolution168 * 168192 * 192
Cabinet weight5KG6.5KG
Maximum / average power consumption per cabinet190W/100W270W/135W
Maximum number of lifting cabinet15 unit15 unit
LED configurationSMD2020 blackSMD2020 black
Vertical viewing angle140°140°
Horizontal viewing angle140°140°
Refresh rate3840Hz3840Hz
Gray scale16Bit16Bit
Scan1/16 scan1/16 scan
Cabinet materialMagnesium alloyMagnesium alloy
Operating temperature / humidity-20°C~45°C/10~90%RH-20°C~45°C/10~90%RH
Storage temperature / humidity-40°C~60°C,10~90%RH-40°C~60°C,10~90%RH
IP rating (front / rear)IndoorIndoor
