户外LED显示屏的散热问题如何解决？

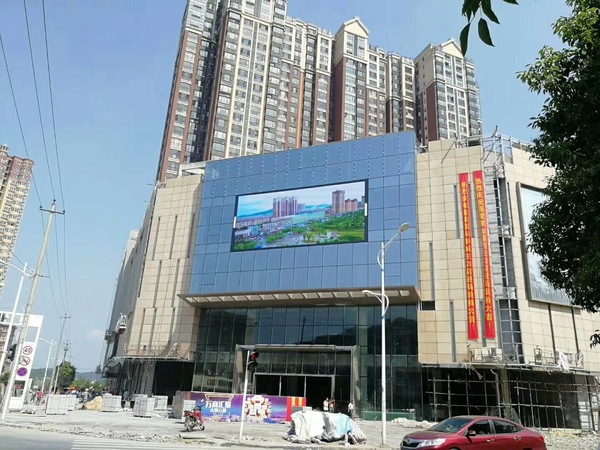

LED显示屏不断在创新，生产工艺也不断完善，越来越多的创意显示屏出现在人们的视野之中。像最近很火的裸眼3DLED显示屏、LED透明屏等等，都赢得了客户的一致认可。那么关于这类的户外LED显示屏如何进行散热呢？

Why LED display can be widely used, my summary is the following:

1. Extensibility: The bigger the LCD screen, the higher the investment in production line equipment. It is easy to increase the size of the LED display, just like building blocks. Resolution is also convenient to achieve according to user needs.

2. Full color: light bulbs, neon lights, etc. are all monochromatic, LED realizes the combination of RGB three primary colors.

3. High reliability: LED is solid lighting, high reliability, unlike neon tubes and light bulbs that require vacuum tubes.

4. Long service life: The theoretical service life of the LED chip can reach 100,000 hours, and the actual service life is more than 30,000 hours.

5. Environment-friendly: LED itself is an energy-saving and pollution-free product.

The biggest problem encountered by LEDs at present is heat dissipation, as is the LED display. The power consumption of LED display screen is very large, a considerable part of energy is wasted on heat. Fever will bring the following problems:

1. Wavelength drift: Wavelength drift will cause problems with color correction. At low and high temperatures, the wavelength drift of LED is relatively large. According to experimental data, each time the temperature changes by one degree, the wavelength changes by 0.2-0.3nm.

2. Decreased output brightness: Each degree of temperature change leads to a 1% change in output brightness, with red lights most affected. From -40 degrees 180% brightness to 120 degrees brightness is less than 50%, that is to say, the brightness of the red light is reduced by nearly two thirds. Relatively speaking, the brightness of blue and green lights is less affected by temperature, especially the blue light. A problem

arises when the temperature rises, the brightness of LEDs of different colors is not the same.

3. Temperature rise leads to shortened LED lifetime: According to data from a laboratory in the United States, the junction temperature increased from 63C to 74C, and the LED lifetime decreased from 36,000 hours to 16,000 hours.

4. Excessive heat dissipation components cause the system cost to increase.

5. Wasted energy and increased user costs.

在炎热的天气里，屏体不仅要接受自然天气的拷打，还要降低屏体运行的温度，所以户外LED显示屏的散热是至关重要的。今天LED厂家光影大师简单的分享了一些户外LED显示屏的散热技巧，希望对大家有所帮助。
